3D Lens in a Cap 9005 - 4:3
3D Lens in a Cap 9005 - 4:3
sample photograph
sample photograph
sample photograph
|

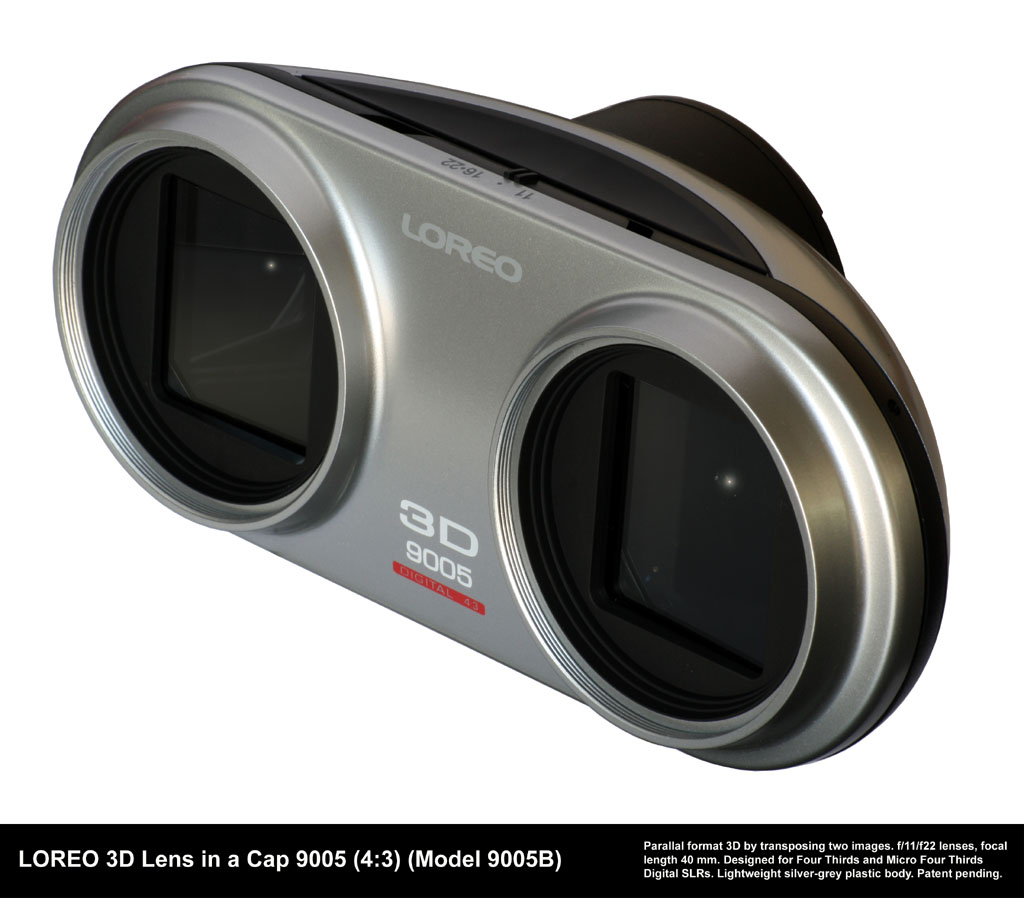

LOREO 3D Lens in a Cap 9005 - 4:3 and Micro 4:3 - Specifications
| Lens Type: |
3D, parallel view
|
| Lens system: |
40 mm, f11-22, 2 element, plastic polymer composite |
Sensor Format:
|
4:3 and Micro 4:3 format subframe digital SLR sensor - ~ (17.3-18) x (13-13.5) mm
|
| Diaphragm: |
Twin Blade, f11, f16, f22 with click stops
|
| Focus adjustment: |
Focusing slider continuous from 1.5m to infinity.
|
| Focusing range: |
1.5m to infinity.
|
| Accessory Lens: |
58mm filter thread. Maximum outer diameter 86 mm. Minimum rear lens diameter 44mm. Suitable for wide angle and tele converters.
|
Special Feature:
|
Gives a 4:3 and Micro 4:3 format subframe digital SLR camera 3D capabilities using normal processing. Retains many of the features of an SLR camera, such as through the lens viewing, auto exposure, TTL flash. Focus coupled Parallax Compensation. Parallax feedback focus aid. |
| Stereo Base: |
90 mm (distance between the two light paths)
|
| Digital SLR body mounts: |
2nd generation Loreo SLR mounts available for Olympus / Panasonic Four Thirds and Micro Four Thirds format. For Canon EOS, Nikon F, Minolta AF / Sony Alpha, Samsung GX / Pentax K APS-C version please visit the 3D Lens in a Cap 9005 - APS-C Specifications page.
|
| Digital SLR compatibility: |
Four Thirds digital SLR cameras (Olympus E1, E3, E30, E300, E330, E400, E410, E500, E510, E520, E620 etc.) and Micro Four Thirds mount digital SLR cameras (Olympus E-P1, E-P2, E-PL1, Panasonic G1, GH1, GF1) are compatible with the 3D Lens in a Cap 9005 4:3 (9005B). No adapter is required. The lens ships with a 4:3 or M4:3 mount (2nd generation Loreo mount) as ordered.
|
| Known issues: |
Olympus E3, E30, E-P1 models should be used with image stabilization turned off. Users with these cameras have reported blurred images on one side which could not be replicated with other Olympus DSLR cameras. The E-P2, E-PL1 have a similar image stabilization feature.
|
Dimensions
(4:3):
|
Measured head on facing the lens: W = 165mm, H = 73mm, L = 65mm (including mount)
|
Dimensions
(Micro 4:3):
|
Measured head on facing the lens: W = 165mm, H = 73mm, L = 85mm (including mount)
|
Body:
|
Lightweight silver-grey plastic body. Fibre reinforced chassis. Hand made. Manual lens, all mechanical parts, no electronics. |
Weight
(4:3)
|
170g |
Weight
(Micro 4:3):
|
190g |
Retail Price:
|
TBA |
Available for purchase:
|
TBA |
- - - - -
3D Lens in a Cap 9005 - 4:3 (LA9005B) Box Set Packing List
- 3D Lens in a Cap 9005 - 4:3 (Model LA9005B)
- 2 Lens Covers for the front
- Lens bag with drawstring (provisional)
- Operation Manual
- Giftbox for 3D Lens in a Cap 9005 - 4:3
- Lite 3D Viewer
- Pixi 3D Viewer
- Deluxe 3D Viewer (Optional)
- - - - -
